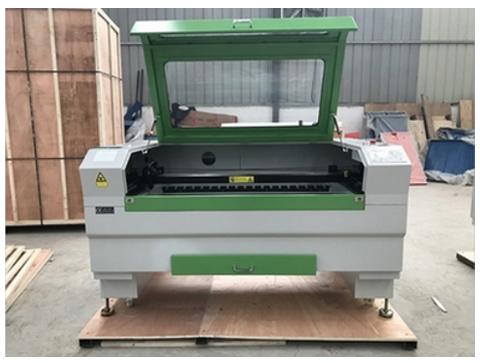

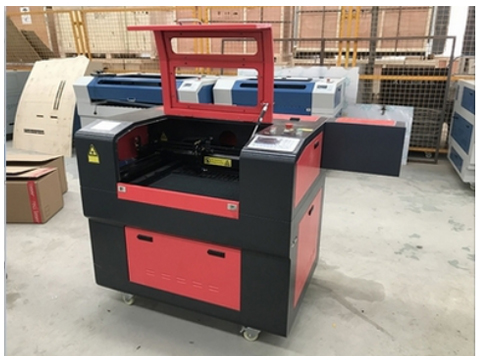

NON-METAL LASER CUTTING MACHINE
NON-METAL LASER CUTTING MACHINE

NON-METAL LASER CUTTING MACHINE
NON-METAL LASER CUTTING MACHINE



Model CM1080 CM1290 CM1490 CM1690 CM160X
Lase Tube Water cooling Co2 sealed glass
Control System 32 Bit DSP
Drive Type Micro Stepping Stepper motor system
Laser Power 60W/80W 100W/150W/180W
Work Area (cm) 80x100 90x120 90x140 90x160 130x160
Max speed 1000mm/s
Image forms Plt, Dxf, Bmp, Ai, Dst
Resolution 250DPI
DoubleHead Optional
PC Interface USB2.0 and USB Disk
Red Dot Pointer Optional
Accessories Air assistant, Exhaust system, water cooling system
Power 110V or 220 - 240V / 50~60Hz
Warrenty 12 Months
Machine Size WxDXH (cm) 160x126x107 180x136x107 204x146x107 224x146x107 224x186x107
G.W.(Kg) 450 480 500 550 600


Machine Features :
  • • Adopt 280w big laser power, helping with oxygen, suitable for all kinds of non-metal engrave and cut and some metals materials cut, one machine double use.
  • • Ruida professional control system, with up-down laser head, measure the focus automatically.
  • • Extensive material processing, smooth cutting edge and burr-free, avoid polishing, Processing high speed, high precision, less waste, high efficiency.
  • • Suitable for large and medium-sized enterprises in the mass production.
  • • Operational speed, laser energy real-time tunable, and very easy for customers to operate. 6. New designed machine body with heavy duty and it is gear transmission, with very long time use than belt transmission.

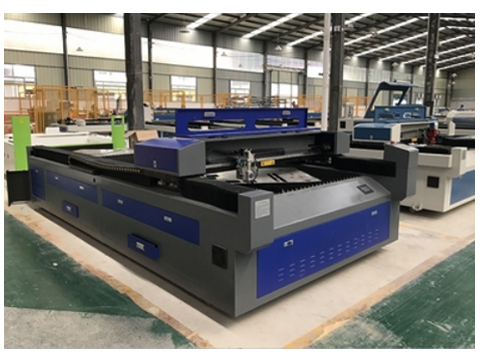

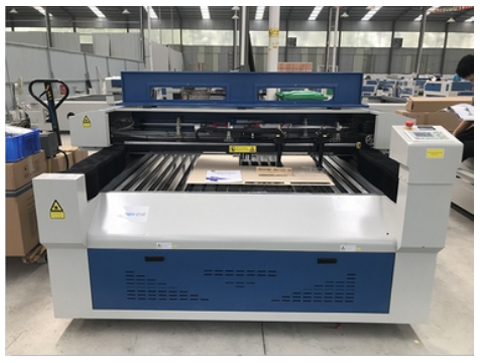

Machine Parameter:
Model INJ1325 (1300*2500mm, metal and nonmetal cutting machine)
Laser-type 280W CO2 laser tube, water-cooled, highest quality Yongli brand
Laser-power 280W (90W , 100W , 130W , 150W optional)
Working area 1500mm x 6000mm
Engraving speed 0-1000mm/s
Cutting speed 0 - 600mm/s
Repeating location ≤±0.01
Transmission type Gear and Hiwin rail Transmission
Graphic format supported BMP, HPGL(PLT), JPEG, DXF,AI, DST
Software supported CorelDraw, Photoshop, AutoCAD, Tajima
Moving system Most popular Ruida controllor
Communication connection USB(Off-line)
Working voltage 220V±10% 50HZ, or 110V/60HZ
Machine color Optional

Applicable Industry

Co2 laser cutting hybrid machine be widely used in kinds of industries, like electric appliances, plate processing, models, advertisements, building and decorating, packing and printing and other high precision required industries.



Applicable Material

Co2 laser cutting hybrid machine proffessional for thin metal and non metal materials cutting, such as stainless steel, carbon steel, acrylic ,wood, MDF, etc.


Technical Parameters
Laser Type Mix cut laser machine for metal and non metal
Laser power 150-260W
Max Cutting Speed 600mm/s
Graphic Format Supported PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF
Power Stability(8h) <±1%RPM
Pulse Repeat Frequency 50 - 60KHZ
Whole Machine Power <800W
Mini Line Width 50um
Mini Character Englishe 1*1 mm
Laser Wavelength 1064mm
Working area 1600*1000mm (Bigger is optional)
Cooling Way S&A CW5200 or CW6100 water cooling
Print interface Ethernet or USB interface
Compatible with Window 8/7/XP etc
Working Voltage AC 110-220 +/- 10%
Package Strong veneer case
