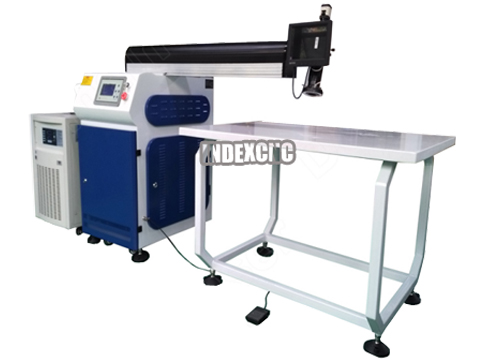

LASER WELDING MACHINE
LASER WELDING MACHINE
LASER WELDING MACHINE
LASER WELDING MACHINE


Introduction :

Logo laser welding 300w channel letter laser welding machine with high quality from machine manufacture is used for the welding of LED illuminated billboard, exterior/interior signs, branding, door plate that made of aluminum, S/S, iron, galvanized sheet, titanium, brass, copper, and etc. Laser beam with high energy melts two metal sheets and combine them together without feeding any soldering materials. From any aspect, laser welding is the best solution and the greenest


Features :
  • • Model No. : INJ-300HZ
  • • Laser source: Nd3+: YAG Φ7*145mm
  • • Laser wavelength: 1064nm
  • • Laser power: 300W
  • • Single-pulse energy: 80J
  • • Pulse duration: 0.2~20ms
  • • Frequency range: 0~30HZ
  • • Current range: 50-200A
  • • Welding pool diameter: 0.3-1mm
  • • Facula diameter: 0.1-3mm
  • • Table size: 1000*750mm
  • • Work radius under standard mode: max 840mm

  • • Work radius under fiber mode: max 5000mm
  • • Handy torch specs: max diameter 22mm, weight 136g,with water cooling,gas tube,button control
  • • 3-axis adjustment: X=500mm, Y=50mm,Z=50mm (X can be adjusted via slide rail, Y can be adjusted with a aluminum platform and Z can be adjusted on laser focus scope)
  • • Date memory: 100 groups
  • • Control panel: LED touch control panel in English
  • • Power supply of laser: 220V/50HZ and 60HZ compatible
  • • Power supply of chiller: 220V/50HZ, 1HP (60HZ chiller optional)
  • • Grand power consumption: Max 8KW
  • • Package dimensions: 1)1930*850*1320 2) 710*550*1050
  • • Gross Weight: 340KG

Application :

Logo laser welding 300w channel letter laser welding machine with high quality from machine manufacture is applied for the welding of various metal letters, LED illuminated letters,customized metal signage, exterior billboards and metal support.


Applicable Materials :

Logo laser welding 300w channel letter laser welding machine with high quality from machine manufacture can weld Aluminum, S/S, Iron, Galvanized sheet, Titanium, Brass, Copper, and etc.
