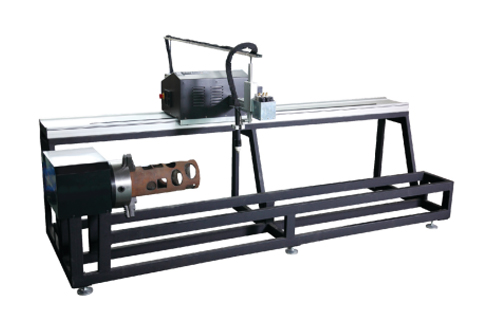

Pipe cutting plasma model of the portable cutting machine which realize both CNC Cutting & Pipe cutting process.

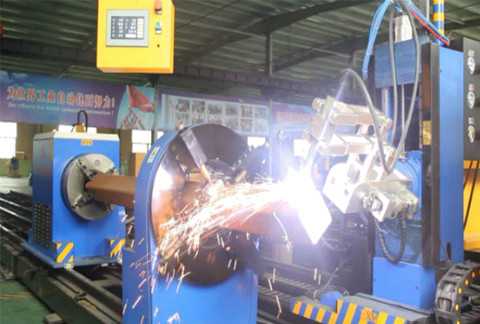

PIPE CUTTING PLASMA MACHINES
PIPE CUTTING PLASMA MACHINES
PIPE CUTTING PLASMA MACHINES


It enjoys features of convenient, easy to handle, working stability & elegant appearance.
Can make intersecting pipe hole cutting in different directions and different diameters.
Can make branch pipe and main pipe vertical or cross in some angle.
Can cut branch intersecting pipe's end socket for main pipe.
Can cut square and slotted hole and all shapes on the pipe.
Can cut dual bending ends for bending of the pipe after welding.

1. Equipped with "Two Axis Linkage Control" intersection.
2. NC System with 7", 10.5" Color LCD Screen for pipe cutting without beveling.
3. Applicable for Flame & Plasma cutting process.
4. AC Stepper or Servo motor drive technology.
5. Input Power: Single Phase AC 220V, Approximately 600W.
6. Transmission: Rack & Pinion drive system.
7. Track Length: 2000mm (effective cutting length Y axis). can be customized for extending cutting length.
8. Applicable Pipe diameter: Φ60mm- Φ600mm.
9. Cutting Speed: 60-2000/ 5000mm/min.
10. Equipped with Fastpipe Nesting & cutting software.

Brief introduction

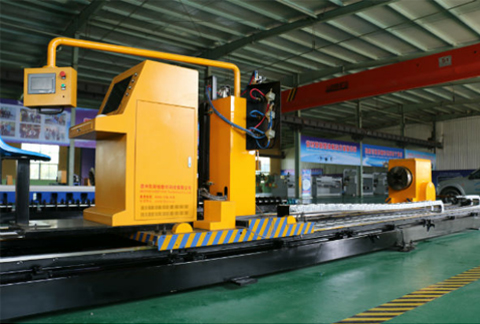

4 axis square tube CNC cutting machine for square pipe, rectangular pipe, oval pipe and profile H, L, U type steel and any other special pipe cutting machine


Features
  • AUTOCAD space programming system configuration plug-ins, modeling at a glance, enabling the cutting process requirements rectangular, tapered, polygonal, oval - shaped pipe, and other special fittings.
  • Independent research and development to optimize CNC pipe systems with large EGES DXF SAT and STL software compatibility.
  • Users can enjoy free special cutting technology development and lifelong technical services.

Applications
  • Applies to all kinds channel, beam, angle, ball flat steel, square pipe and rectangular pipe etc.
  • Especially for steel construction, shipbuilding, marine engineering, the elevator industry, building walls, bridges, towers and mechanical engineering industries.

Moving axis Choosing axis Rang of activities
X Axis Spindle Box moving axis direction Maximum stroke (customer cut pipe length )
Y axis Workpiece rotation axis direction 360o  free rotation
Z axis Cutting Torch moving in up and down Max stroke is half of largest diameter adding 20mm
U axis Cutting Torch moving in forth and back Round pipe : 50 - 200mm
Square pipe : 60 - 200mm
